Diamond Hard Broaching
Accu-Cut’s diamond hard broaching can requalify up to 100% of fallout parts after heat treat, reducing scrap and saving thousands of dollars.

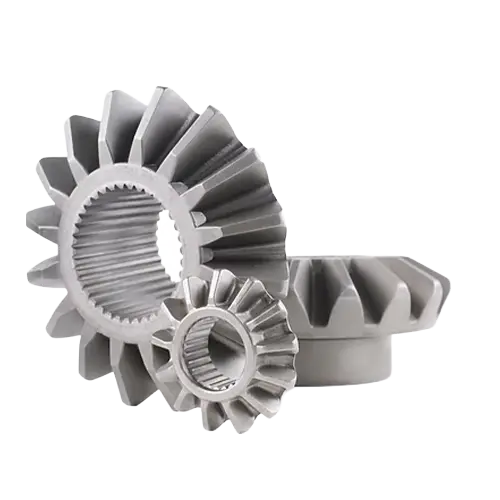

Remove heat treat distortion interference in ID spline.
| Total Profile Error: | < 0.001" / 0.025mm |
| Pitch Tolerance: | < 0.001" / 0.025mm |
| Index Tolerance: | < 0.008" / 0.203mm |
| Cycle Time: | < 14 seconds |
Accu-Cut's Diamond EZ-BROACH process removed heat treat distortion and improved roundness by over 330%.

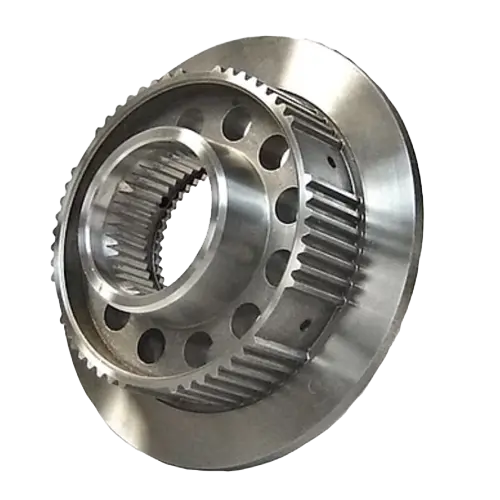

Remove post heat treat deformation.
Accu-Cut's Diamond EZ-BROACH process salvaged 96% of fallout parts.
| Cycle Time: | 10 - 40 seconds |

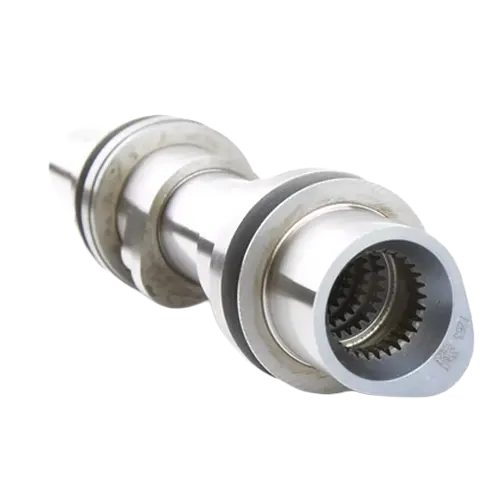

Reduce CPU of high volume process by reclaiming fallout parts.
Customer purchased turnkey Accu-Cut EZ-BROACH process.
| Parts Reclaimed: | 100% |
| Stock Removal: | 0.0027" / 0.069mm over pins |
| Cycle Time: | < 8 seconds |
| Capacity: | 1 million parts per year |
Accu-Cut's Diamond EZ-BROACH process reclaimed 100% of fallout parts and saved our partner over $70,000 per year.
