Hydraulic Valves

Hydraulic Valves

Accu-Cut diamond tooling delivers precision bores with near-zero hysteresis for unmatched accuracy.

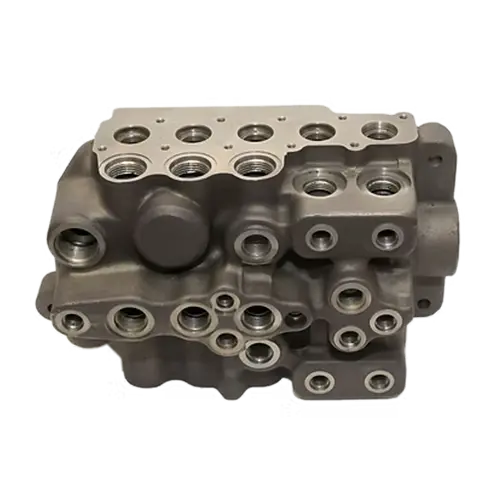

Ductile Iron Agriculture Monoblock

Ductile Iron Agriculture Monoblock

Ductile Iron Agriculture Monoblock

CPU = $0.003 per unit

Objective:

Bore Diameter:	0.7338" / 18.64mm
Roundness:	< 0.0001" / 0.0025mm
Straightness:	0.0003" / 0.0076mm

Achievement:

Bore Size Control:	> 2.0 Cpk
Roundness:	< 0.00002" / 0.0005mm
Straightness:	< 0.0002" / 0.005mm
Cycle Time:	< 60 seconds

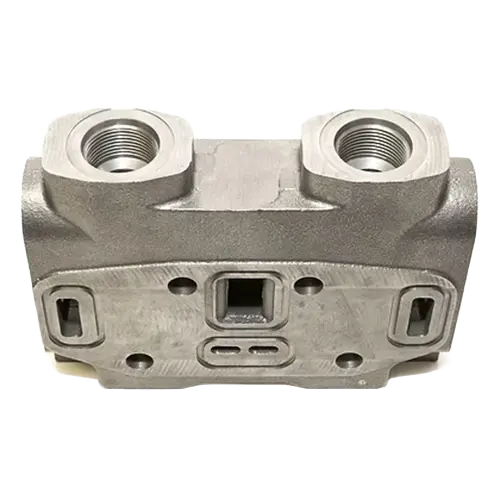

Gray Iron Sectional Valve

Gray Iron Sectional Valve

Gray Iron Sectional Valve

CPU = $0.003 per unit

Objective:

Bore Diameter:	0.2976" / 7.56mm
Roundness:	< 0.00002" / 0.0005mm
Straightness:	< 0.0002" / 0.005mm

Achievement:

Bore Size Control:	> 2.0 Cpk
Roundness:	< 0.000015" / 0.0004mm
Straightness:	< 0.0002" / 0.005mm
Cycle Time:	< 55 seconds

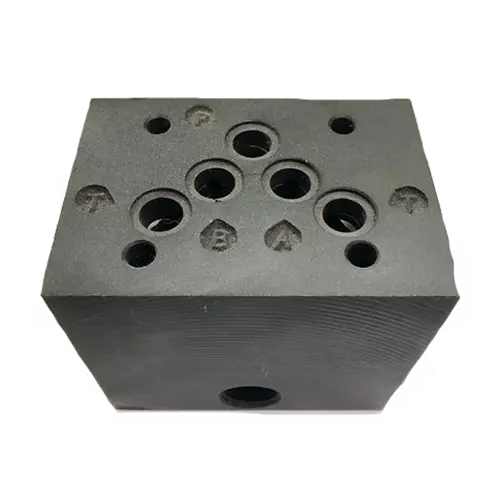

Ductile Iron Industrial Valve

Ductile Iron Industrial Valve

Ductile Iron Industrial Valve

CPU = $0.002 per unit

Objective:

Bore Diameter:	0.3152" / 8.01mm
Roundness:	< 0.0002" / 0.005mm
Straightness:	< 0.0004" / 0.010mm

Achievement:

Bore Size Control:	> 2.0 Cpk
Roundness:	< 0.00002" / 0.0005mm
Straightness:	< 0.0002" / 0.005mm
Cycle Time:	< 38 seconds

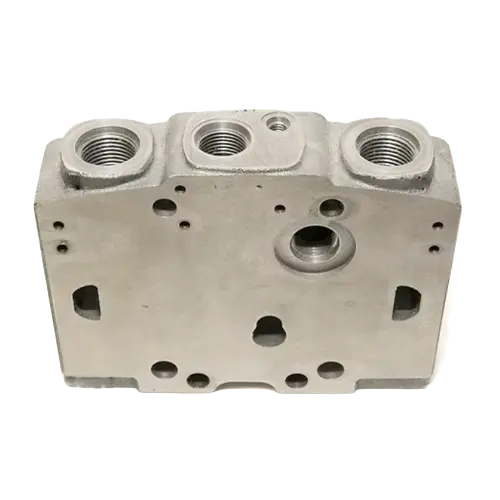

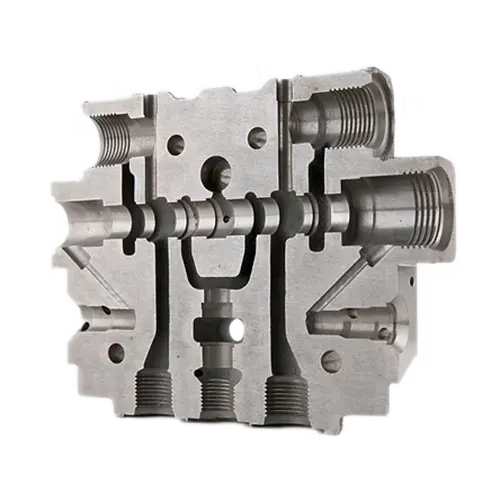

Ductile Iron Sectional Valve

Ductile Iron Sectional Valve

Ductile Iron Sectional Valve

CPU = $0.003 per unit

Objective:

Bore Diameter:	0.7329" / 18.62mm
Roundness:	< 0.0001" / 0.0025mm
Straightness:	< 0.0003" / 0.0076mm

Achievement:

Bore Size Control:	> 2.0 Cpk
Roundness:	< 0.00003" / 0.00076mm
Straightness:	< 0.0002" / 0.005mm
Cycle Time:	< 59 seconds

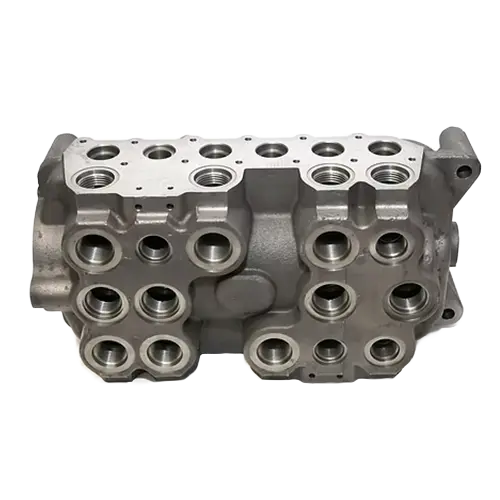

Ductile Iron Off-Road Monoblock

Ductile Iron Off-Road Monoblock

Ductile Iron Off-Road Monoblock

CPU = $0.004 per unit

Objective:

Bore Diameter:	0.6250" / 15.875mm
Roundness:	< 0.0001" / 0.0025mm
Straightness:	0.0002" / 0.005mm

Achievement:

Bore Size Control:	> 2.0 Cpk
Roundness:	< 0.00002" / 0.0005mm
Straightness:	< 0.0001" / 0.0025mm
Cycle Time:	< 90 seconds

Ductile Iron Sectional Valve

Ductile Iron Sectional Valve

Ductile Iron Sectional Valve

CPU = $0.003 per unit

Objective:

Bore Diameter:	0.875" / 22.23mm
Roundness:	< 0.0001" / 0.0025mm
Straightness:	< 0.0003" / 0.0076mm

Achievement:

Bore Size Control:	> 2.0 Cpk
Roundness:	< 0.00002" / 0.0005mm
Straightness:	< 0.0002" / 0.005mm
Cycle Time:	< 58 seconds

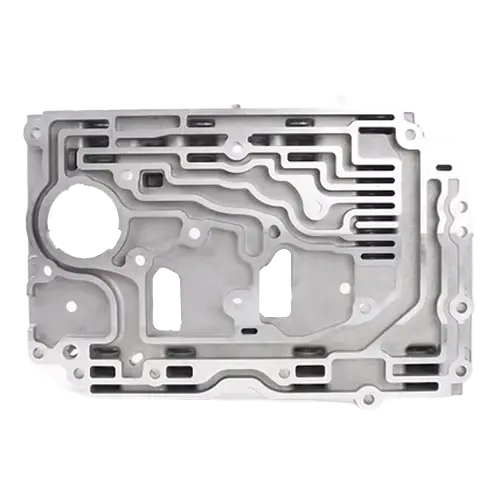

High Silica Aluminum Directional Valve

High Silica Aluminum Directional Valve

High Silica Aluminum Directional Valve

CPU = $0.001 per unit

Objective:

Bore Diameter:	0.10000" / 2.54mm
Roundness:	< 0.0001" / 0.0025mm
Straightness:	0.0002" / 0.005mm

Achievement:

Bore Size Control:	> 3.0 Cpk
Roundness:	< 0.000020" / 0.0005mm
Straightness:	< 0.000050" / 0.001mm
Cycle Time:	< 29 seconds

Want to learn more about our Hydraulic Valves applications?
