Lifter Bodies

Lifter Bodies

Accu-Cut’s diamond tools can finish as many as 500,000 lifter bodies before needing to be replaced.

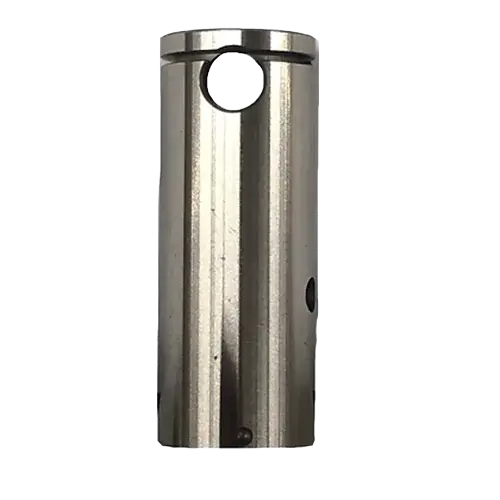

Deactivating Lifter

Deactivating Lifter

Deactivating Lifter

CPU = $0.001 per unit

Objective:

Reduce customer's CPU on new generation deactivating lifter.

Bore Diameter:	0.2370" / 6.02mm
Bore Hardness:	58-63 HRC
Bore Length:	0.6245" / 15.86mm
Surface Finish:	4.0 Rz

Achievement:

Bore Size Control:	> 2.0 Cpk
Surface Finish:	< 1.65 Rz
Cycle Time:	< 8 seconds

Customer purchased Accu-Cut process achieving:

14 million parts per year
66% lower machine cost
25% higher machine capacity
220% savings on tool expense
$1,100,000 total cost savings vs. conventional technology

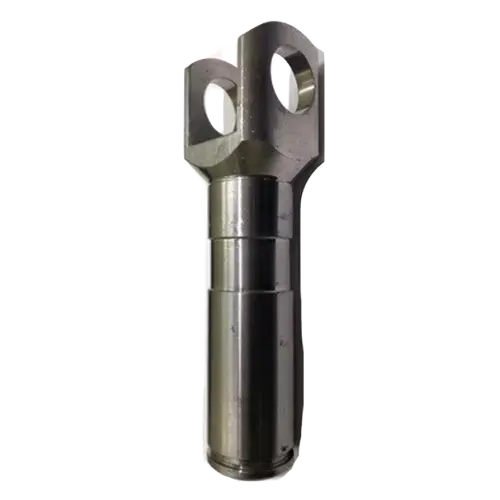

Diesel Lifter

Diesel Lifter

Diesel Lifter

CPU = $0.002 per unit

Objective:

Bore Diameter:	0.5074" / 12.89mm
Surface Finish:	16 Rz
Roundness:	< 0.0005" / 0.013mm

Achievement:

Bore Size Control:	> 2.0 Cpk
Surface Finish:	< 3 Rz
Roundness:	< 0.000060" / 0.0015mm
Cycle Time:	< 13 seconds

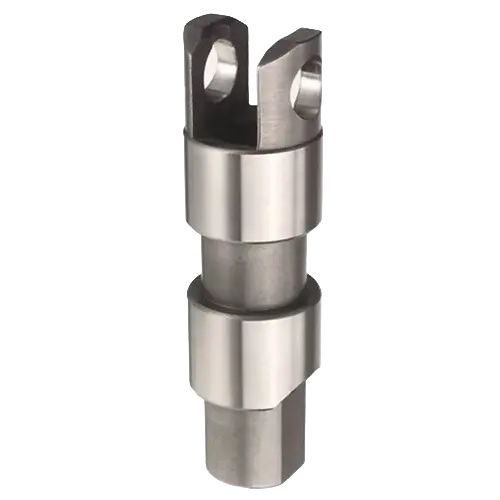

Auto Lifter

Auto Lifter

Auto Lifter

CPU = $0.002 per unit

Objective:

Bore Diameter:	0.3155" / 8.014mm
Surface Finish:	12 Ra / 0.3mm Ra

Achievement:

Bore Size Control:	> 2.0 Cpk
Surface Finish:	< 6 Ra / 0.15mm Ra
Cycle Time:	< 12 seconds

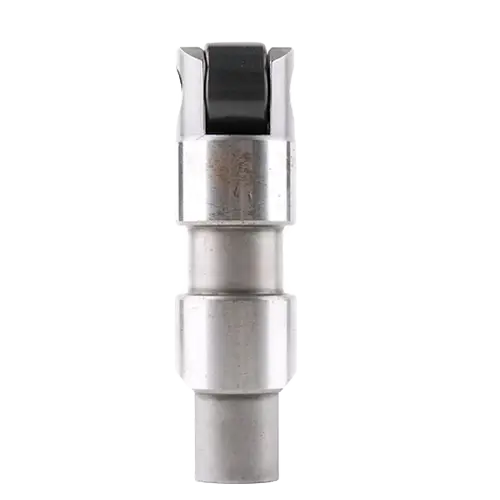

Auto Lifter

Auto Lifter

Auto Lifter

CPU = $0.001 per unit

Objective:

Bore Diameter:	0.2984" / 7.58mm
Surface Finish:	12 Ra / 0.3mm Ra
Stock Removal:	0.0024" / 0.061mm

Achievement:

Bore Size Control:	> 2.0 Cpk
Surface Finish:	< 6 Ra / 0.15mm Ra
Cycle Time:	< 10 seconds

Want to learn more about our Lifter Bodies applications?

Technical Brochures

Roller Lifter

Related Tools

Through Bore

CNC Turnkey Systems

Accu-Cut turnkey systems combine intelligent control, engineered tooling, and automation options to create stable, repeatable processes designed for high-volume manufacturing.
